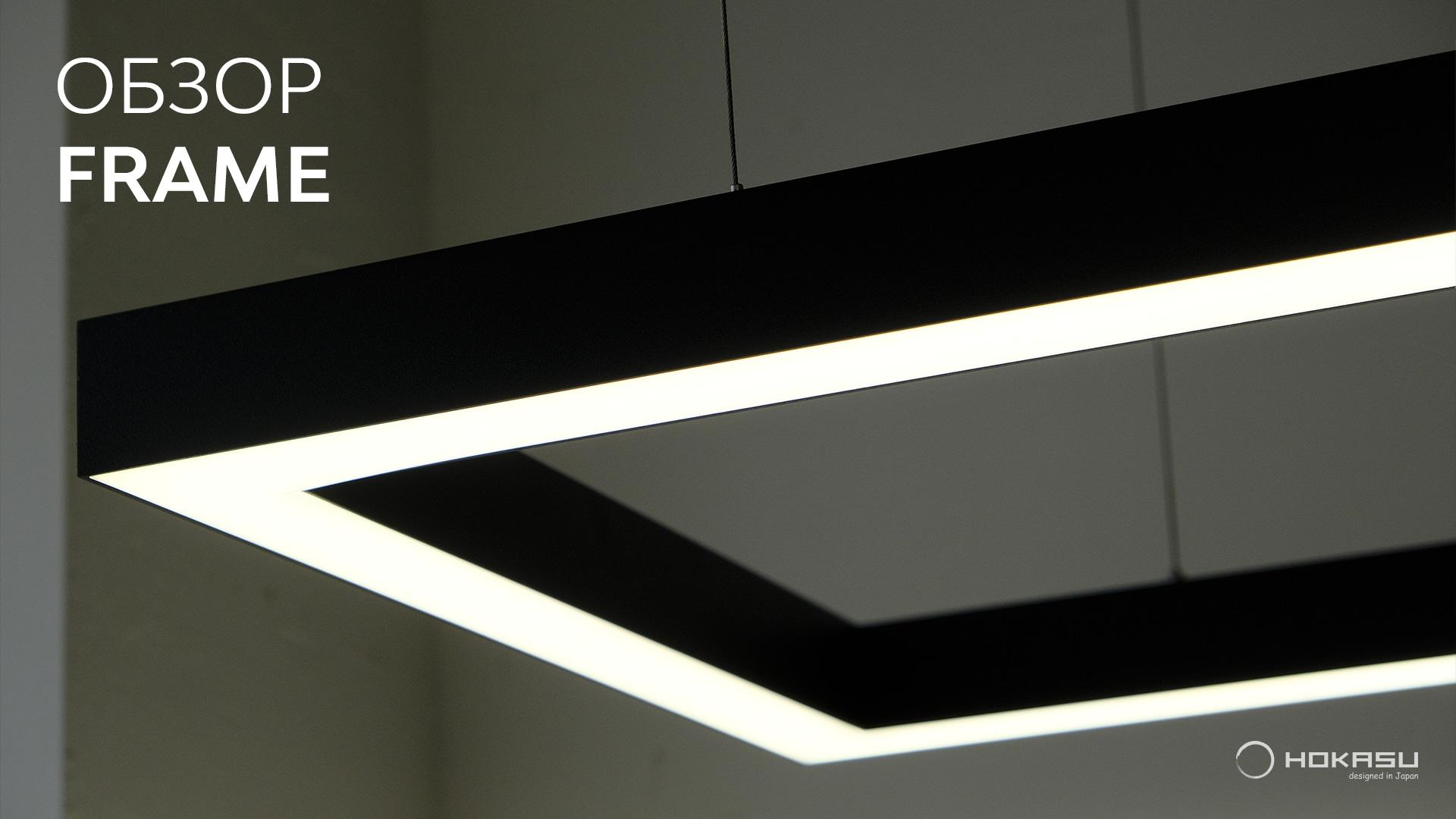

The series includes square and rectangular models. The width of the light part is selectable: 45 mm and 30 mm.
We recommend using Frame series in the office: above workstations, conference rooms, meeting rooms and corridors. The luminaire is used both solo and in a group to create light zoning and light compositions in the interior.
HOKASU has anticipated the inconvenience of past models and created a new solution - a profile with an additional compartment for the power supply unit. It is no longer necessary to attach the power supply to the base of the housing: a special compartment hides the power supply in the luminaire body.
The harmony and style of the series intersects with the practicality of installation. There is no need to cut a hole in the ceiling for installation, as the profile is mounted on hangers or by surface mounting.
If the project calls for suspended mounting, the luminaire is secured to the main ceiling with an optional collet suspension system. The secure mounting and convenient collet suspension system allows the luminaire to be mounted at the desired height.
An alternative method of mounting without hangers is surface mounting with self-tapping screws. The body can be attached to any surface (ceiling/wall) without compromising its integrity. This luminaire is ideal for rooms with low ceilings.
Linear lights are a profile in which light modules are installed. The kit also includes a power supply and 2 plugs. Ready luminaire is connected to 220V. Modules with frosted diffuser and wide light angle of 120° provide a high level of visual comfort and exclude glare effect.
If your project calls for a standard size luminaire (625, 1250, 2500mm), the only thing you need to additionally choose a mount for suspended or surface mounting.
Profile is made of aluminum alloy 6063 (AD31 // GOST 4784-97) and is hardened in the press to achieve the maximum strength Т6. The surface is treated on an Italian anodizing line "Qualanod" - luminaire body has a high resistance to scratches and corrosion.
The modern solution for the linear luminaire - diffusers with patented technologies HGC, HPC и HHC.
The technology of HOKASU Glare Control (HGC) was developed especially for commercial premises. Based on the technology, we produce transparent and prismatic diffusers with high light transmission and a pleasant geometric lighting effect. HGC diffusers are compatible with the UGR standard (Unified Glare Rating) and can increase the lighting efficiency of commercial spaces up to 90%.
The co-extrusion technology of HOKASU Protect Cover (HPC) has developed a diffuser that has simple light transmission and a long service life. Each diffuser is made of two materials:
HOKASU Heat Control (HHC) is a special polycarbonate that has 10 times the heat output of conventional untreated plastic. The main factor affecting the luminaire durability is good cooling of LED modules, which is very important in the design. Recall that the HOKASU linear luminaire is based on aircraft aluminum. The only element that does not transmit heat well is the diffuser. Based on these factors, we developed a polycarbonate using HHC technology, which allowed us to increase the heat transfer in the finished luminaire.
In the manufacture of diffusers patented German light-scattering polycarbonate granules are used.
The diffuser does not change color throughout its lifetime (more than 10 years).
There are two diffuser options to choose from:
The HOKASU LED module has a high color rendering index of CRI>85, a parameter that is important to consider when organizing lighting in any type of room.
Modern crystals with luminous efficacy >140 lm/w have made it possible to set the energy efficiency class A++. Taking into account losses when passing through the diffuser, the luminous flux reaches 110 lm/w - the best figure for such equipment in the world.
The aluminum base actively dissipates heat, which extends the life of the LEDs and protects the board from physical damage. The module is superior in reliability to any high-power LED strip.
Each module is manufactured in control according to Japanese quality standards and is tested in the laboratory.
The luminaires use high-efficiency Japanese LED modules that guarantee high color rendering index (CRI>85) and hue in the strict ranges of 2900-3100K, 3900-4100K. Each module has been tested in the laboratory and tested to a strict quality standard. Statistically, >80% of lighting projects around the world are realized using light sources with a color temperature of 4000K.
If you want to make a non-standard size or configuration of several lights (square, triangle, transition from wall to ceiling), you are suitable - the base of the linear light. Kit of the base: luminaire body, LED modules.
Several small lights can be made from a single base to custom sizes. For this you will need to buy power supplies, end caps and mounting system. It is also possible to order a modification for areas with high humidity.
If you have any difficulties with the choice of equipment, we are ready to help you. Call us 8 (499) 322-20-84 or send a project to sale@ulight.ru - we will make a calculation of illumination, select equipment and produce the luminaire of the configuration you are interested in.
The clever design of HOKASU luminaires allows the installation of various control systems:
Vous trouverez des modèles 3D de toutes les lampes dans la fiche produit.
