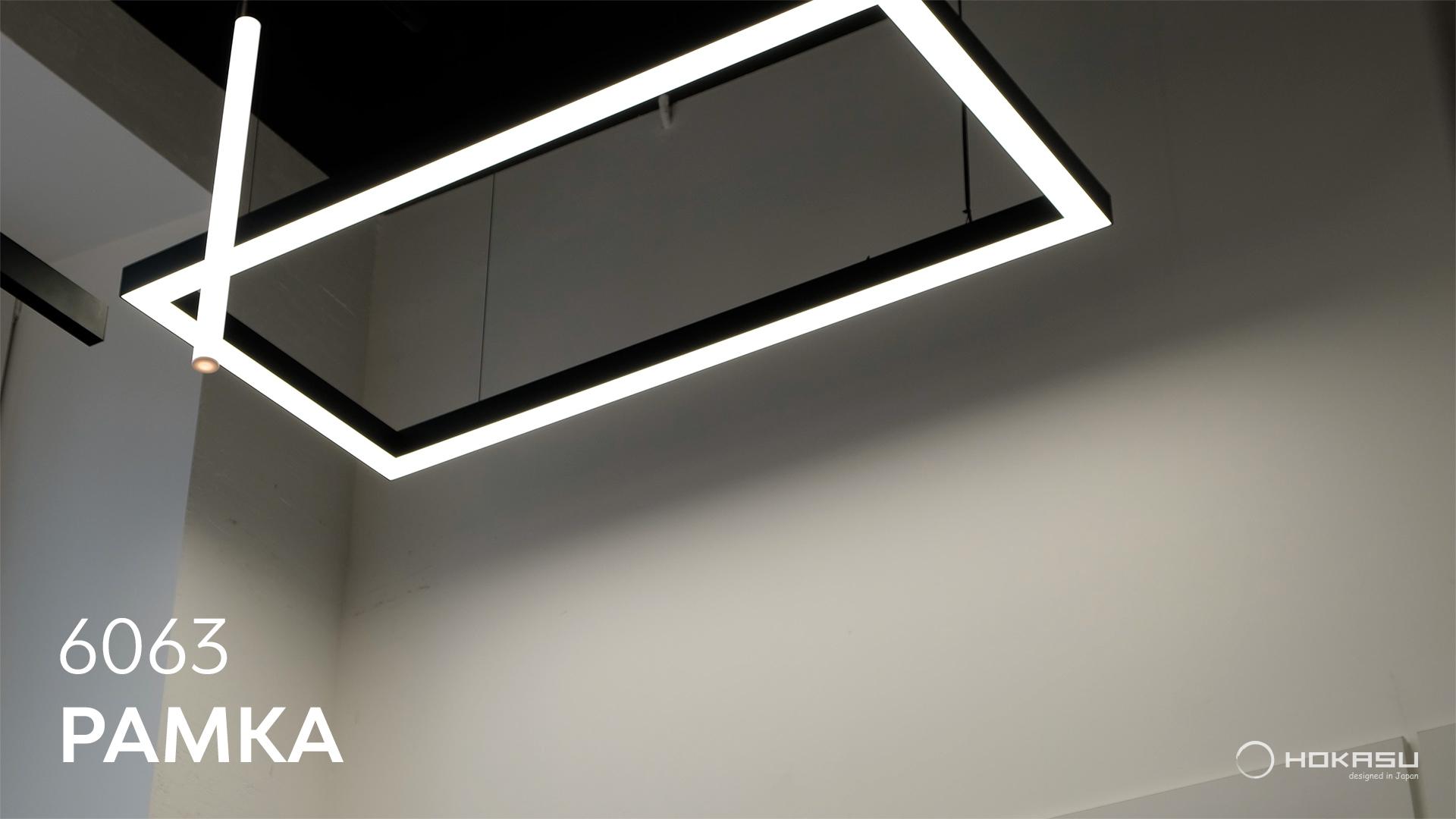

Lamp Skeleton

The series includes models in the form of squares and rectangles. The width of the lighting part is 45 mm.

Application

We recommend using the Frame series in an office setting: above workstations, in conference rooms, in meeting rooms, and corridors. The luminaire can be used individually or in groups to create lighting zones and compositions in the interior.

Advantage

Specialists at 6063 have addressed the inconvenience of previous models and come up with a new solution - a profile with an additional compartment for the power supply unit. There is no longer a need to attach the power supply unit to the base of the luminaire; a special compartment hides the power source inside the luminaire's body.

Installation

The harmony and style of the series intersect with practicality of installation. There is no need to cut a hole in the ceiling for installation, as the profile can be mounted on hangers or as surface-mounted.

For suspended installation in accordance with the project, the luminaire is attached to the main ceiling using a separate purchase of a clamp suspension system. Reliable attachment and a convenient clamp suspension system allow for securing the luminaire at the desired height.

An alternative installation method without suspension involves surface mounting using screws. The luminaire's body can be attached to any surface (ceiling/wall) without compromising its integrity. This type of luminaire is perfect for rooms with lower ceilings.

Distinguishing Features

Linear luminaires consist of a profile in which light modules are installed. The kit also includes a power supply unit and 2 plugs. The ready-made luminaire is connected to a 220V power supply. Modules with matte diffusers and a wide beam angle of 120° provide a high level of visual comfort and eliminate glare.

Additional Features

• Extension of suspension length and connecting cable;
• Painting of the body in any color according to the RAL table;
• Production of dimmable luminaires;
• Production of RGB versions of luminaires.

Equipment

Specifications

Color Temperature

Highly efficient Japanese LED modules are used in the luminaires, guaranteeing a high color rendering index (CRI>85) and shades in strict ranges of 2900-3100K, 3900-4100K. Each module undergoes laboratory testing and strict quality control to meet the highest standards. According to statistics, over 80% of lighting projects worldwide are implemented using light sources with a color temperature of 4000K.

Customization

If you want a luminaire of non-standard size or want to create a configuration of multiple luminaires (square, triangle, transition from wall to ceiling), the foundation of a linear luminaire is suitable for you. The foundation kit includes the luminaire's body and LED modules. From one foundation, you can create several small luminaires of individual sizes. To do this, you will need to purchase power sources, end plugs, and mounting systems. You can also order modifications for areas with increased humidity.
